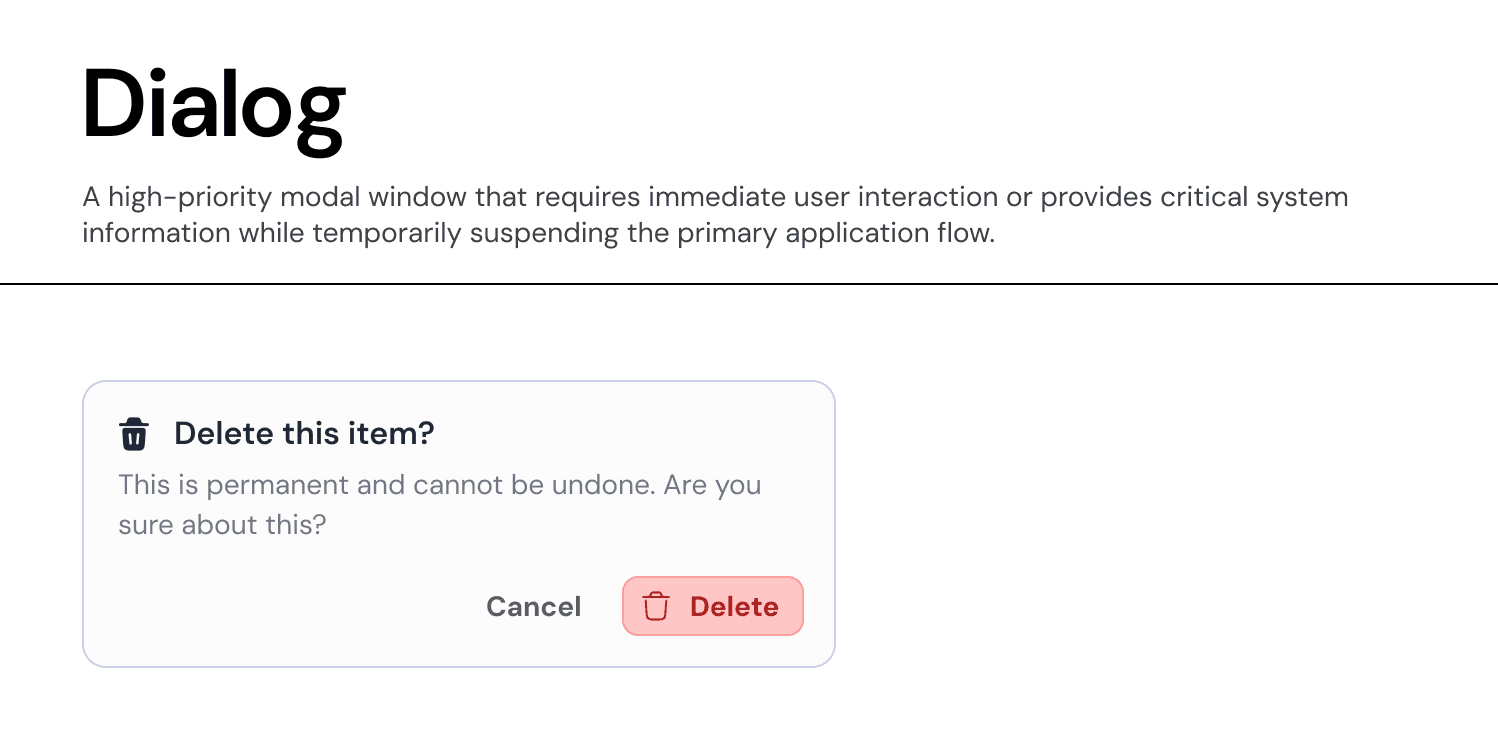

Dialog (Modal)

Usage Guidelines:

• Do Use for critical confirmations (e.g., "Delete Item") where the action is irreversible.

• Do Use for focused, short tasks that don't warrant a full page navigation (e.g., "Rename File").

• Do Not Use for non-critical notifications (use a Toast instead).

Anatomy & Properties:

The Dialog is a structured container built to focus attention.

A. The Header

• Heading Label: A clear, concise question or statement (e.g., "Delete this item?").

• Leading Icon (Optional): A semantic icon (e.g., Trash Can) reinforces the nature of the request.

  • Property: hasHeadingIcon, headingIcon.

B. The Body

• Body Label: Supporting text that provides necessary context or warns of consequences (e.g., "This is permanent and cannot be undone...").

C. The Footer (Actions)

• Primary Action: The affirmative command (e.g., "Delete"). Aligned to the right.

• Secondary Action: The dismissive command (e.g., "Cancel").

• Layout: Buttons are grouped at the bottom right to align with standard web patterns.

Variants & Semantics:

A. Standard Dialog

Used for neutral decisions or information input.

• Visuals: Uses standard Text-Neutral colors and Button-Primary (Blue).

B. Destructive Dialog (Critical)

Used when the action results in data loss.

• Visuals:

  • Header Icon: Uses Icon-Semantic-Error (Red) or a specific destructive symbol (Trash).

  • Primary Button: Uses Button-Semantic-Error (Red Background) to signal danger.

  • Focus Management: Focus should default to the "Cancel" button to prevent accidental deletion via the Enter key.

Behavior:

• Overlay: Appears with a Overlay-Background scrim (50% opacity) to obscure the parent page.

• Dismissal: Can be dismissed by clicking "Cancel," clicking the overlay (if non-critical), or pressing Esc.

  • Constraint: For destructive dialogs, clicking the overlay is often disabled to force an explicit choice.
